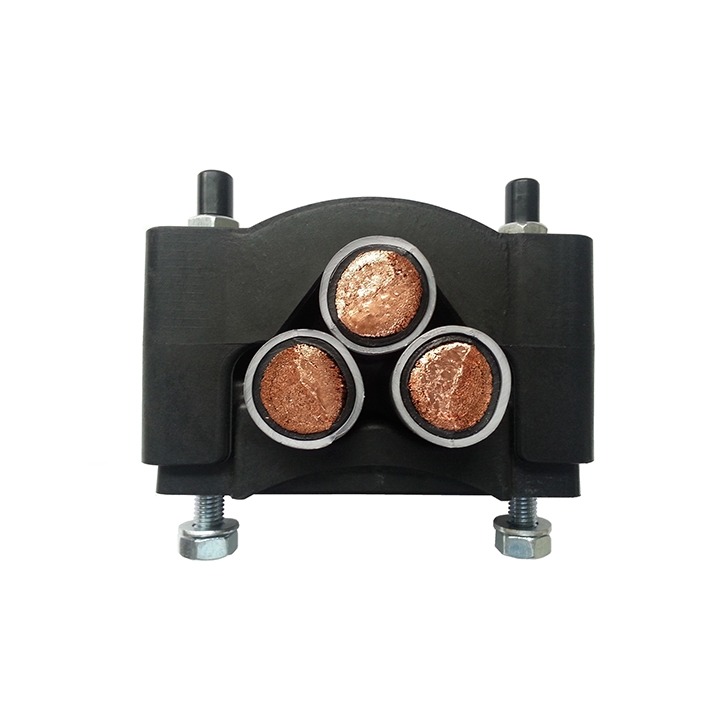

FOX-TRI (triple) + Threaded Rod Set

Fast, efficient costing, procurement and implementation. The right parts, made to measure, delivered to the workplace.

This set consists of:

• The FOX-TRI cable clamp
• Threaded rods (cut to the correct length)
• Nuts
• Washers
• Mounting hardware: galvanised steel; hot-dip galvanised / stainless steel also available
• Cap covers for the top of threaded studs

• Short-circuit-proof installation of three (3) single-core or multi-core low-, medium- or high-voltage cable or conduit with a diameter of 26–150 mm
• Mechanical strength: up to 84,000 N
• The first two models are stackable
• Tightening torque: max. 5 Nm
• High-quality glass-fibre-reinforced polyamide
• Temperature range: -40°C to +135°C
• Excellent mechanical, thermal and chemical resistance; halogen-free
• A perfect fit thanks to its clever design
• Fitted with countersunk holes for nuts/bolt heads
• Available as a COMPLETE SET including a UNISTRUT mounting rail
• Also for mounting on UNISTRUT racks
• Fast delivery and personalised advice!
