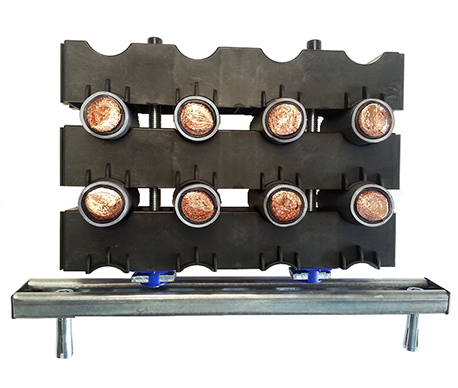

The FOX-UNI (Universal) cable block set is suitable for installing single-core or multi-core cables and conduits with an outer diameter of 15 to 49 mm.
The set is available in 3X and 4X versions. In the 3X version, each layer consists of three cables or conduits laid side by side. In the 4X version, each layer consists of four cables or conduits. Both versions can be constructed from multiple layers.
The FOX-UNI cable block can be connected using a double dovetail joint and can be extended layer by layer. The temperature range is between -40 °C and +135 °C.
FOX CLAMPS® – Cable blocks
In addition to cable clamps, FOX Clamps also offers an extensive range of cable blocks. With our complete cable block sets, you always have the right parts on hand at your worksite, ensuring a perfect fit and secure cable management. The result: no more cutting by your technicians or shortages of parts!
Types of cable blocks
We offer various types of cable blocks in our range. In addition to their design and fit, our cable blocks stand out for their excellent resistance to factors such as mechanical stress, heat, UV radiation and chemicals. In addition, our products are halogen-free, have a mechanical strength of up to 54,000 N and are NEN-EN-IEC 61914 certified.
The cable blocks are made of high-quality glass-fiber-reinforced polyamide. In our FOX-UNI cable blocks, the cables are mounted in parallel with a center-to-center distance of 2xD (cable diameter). We recommend an average distance of approximately 30–40 cm per set.
For each cable block set, there is the option to supply the mounting materials in galvanised, hot-dip galvanised, or stainless steel (SS). These materials include threaded studs, Kwikstrut sliding nuts, Unistrut rails, washers and expansion anchors. Please keep this in mind when ordering. We are, of course, happy to provide advice on this.
Are you interested in our cable blocks? Please contact us via sales@fox-clamps.com or call 0345 – 596 000. We would be happy to advise you.
