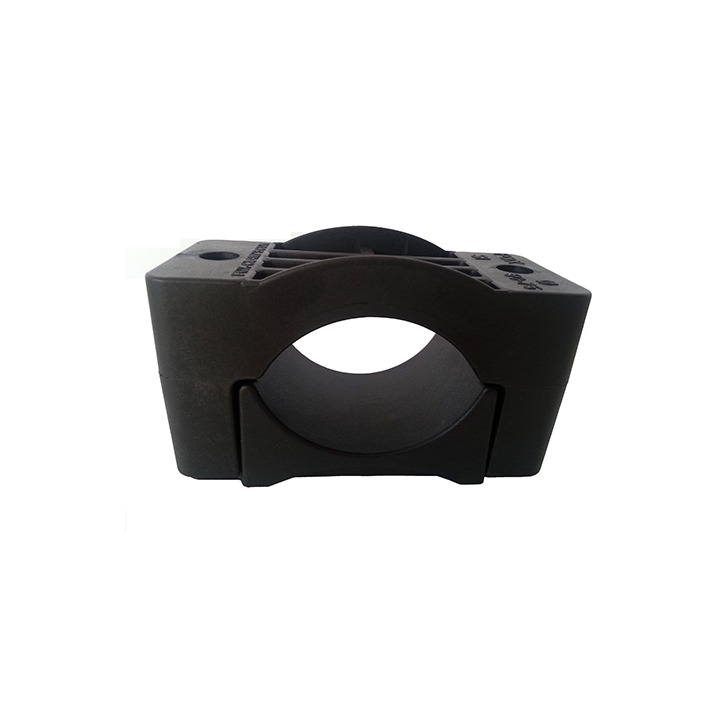

FOX-SI (single)

Short-circuit-proof installation of one (1) single-core or multi-core low-, medium- or high-voltage cable or conduit with a diameter of 15–170 mm
Mechanical strength: up to 85,400 N
All FOX-SI models are stackable (with the exception of the FOX-SI Ø 130–170)
Tightening torque: max. 5 Nm
Material: high-quality glass-fibre-reinforced polyamide
Temperature range: -40°C to +135°C
Excellent mechanical, thermal and chemical resistance; halogen-free
Certified in accordance with NEN-EN-IEC 61914:2016
A perfect fit thanks to its clever design
Fitted with countersunk holes for nuts/bolt heads
Available as a COMPLETE SET including a UNISTRUT mounting rail
Also for mounting on UNISTRUT racks
Fast delivery and personalised advice!

Size

Clear

Item number: Make a selection Category Cable clamps Tag FOX-SI
