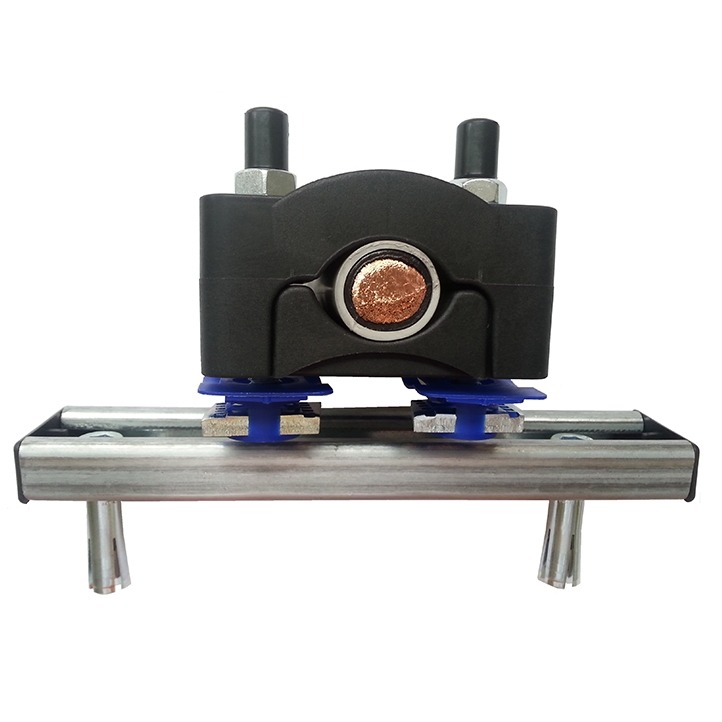

FOX-SI + Rail Set

Fast, efficient quotation, procurement and implementation. The right parts, made to measure, delivered to the workplace.

This set consists of:

• The FOX-SI cable clamp
• Threaded rods (cut to the correct length)
• Nuts
• Washers
• Kwikstrut sliding nuts
• Mounting material: galvanised steel; hot-dip galvanised / stainless steel also available
• End caps for the top of threaded rods and rails
• Unistrut rail (41x21mm) with slotted holes
• Set of hammer-in plugs (including washers and bolts)

• Short-circuit-proof installation of one (1) single-core or multi-core low-, medium- or high-voltage cable or conduit with a diameter of 15–170 mm
• Mechanical strength: up to 85,400 N
• All FOX-SI models are stackable (with the exception of the FOX-SI Ø 130–170)
• Tightening torque: max. 5 Nm
• High-quality glass-fibre-reinforced polyamide
• Temperature range: -40°C to +135°C
• Excellent mechanical, thermal and chemical resistance; halogen-free
• A perfect fit thanks to its clever design
• Fitted with countersunk holes for nuts/bolt heads
• Available as a COMPLETE SET including a UNISTRUT mounting rail
• Also for mounting on UNISTRUT racks
• Fast delivery and personalised advice!
